Redrive  /  Reduction Drive For ultralight aircraft engines.
Also known as PSRU          -          Over 685 sold worldwide.

Fits: Commercial V-Twin:  627 cc  to 993 cc. Including singles:
Briggs & Stratton, Predator 670, Kohler, Subaru,  Honda and more   -   GK, Odes and  LZmoto  -  Honda Silver Wing   -   Yamaha Phazer  -  Suzuki Geo  -  and more.

627 cc V-Twin engines. With Poly V-Belt rerive.

623 cc V-Twin

Ace Aviation Redrive.JPG

993 cc V-Twin engine. With Poly V-Belt redrive

Ace Aviation redrive..jpg

Ace.Aviation redrive on WW1 replica: Nieuport 11

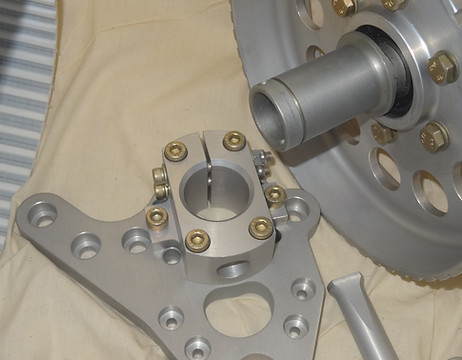

Eccentric shaft adjustment is built in to all Ace Aviation redrives.

DSC06287 - Copy.JPG

Belt tension locked by 2  Allen head bolts on "eccentric shaft.


*   Belt tension should be under 29 Nm`s


PRICES  Poly - V Belt types

Up to 28 hp  -  -  -  US $ 679  -  -  -  £ 559  -  -  -  € 639

28  to 35 hp  -  -  -  US $ 759  -  -  -  £ 629  -  -  -  € 699

35 to 44 Hp  -  -  -  US $ 789  -  -  -  £ 649  -  -  -  € 735

44  to 50 hp  -  -  -  US $ 829  -  -  -  £ 695  -  -  -  € 765

           -  -  -  -  -  -  -  -  -  -  -  -  -  -​  -  -  -  -  -  -  -  -  -  -

Freight to mainland USA . - - - - - US $ 119

Freight to mainland the U.K. - - -  £ 94

Freight to Mainland Europe. - - - - Euro 98​

          -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

Standard Ratio 1 / 1.8.  - - - - - Easy eccentric shaft adjuster.

  • Your engine must have the standard parallel crankshaft of 1 to 1 7/16 ths.

  • Customer is responsible for getting / buying the keyless bush for small pulley to the crankshaft. Not supplied by Ace Aviation.



  • All nuts and bolts are in all fittings that join all redrive parts together. BUT Customer gets bolts that go from the backplate to their engine crankcase.

-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

V-Twin. Commercial Engines

  • Designed for up to 50 HP

  • Redrive weight - 623 cc = 3.9 Kg.

  • Redrive weight - 993 cc = 4.2 Kg

  • 1:1.8 standard ratio

  • Easy eccentric cam adjuster

  • Fully assembled from Ace Aviation.

-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

Redrive fixing for:

  •  Briggs and Stratton

  •  Predader 670 and others

  •  Honda

  •  Subaru

  •  Kawasaki

  •  Kohler

  •  Lifan

  •  Yamaha

        And many others.

Legal Eagle. (Leonard Milholland)

 Tooth pulley redrive Option for: Briggs & Stratton

 types. Up to 50 hp

-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  - -



-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

Price  -  Tooth Belt redrive:  $ 1099   -   £ 879   -   € 1029​​

Freight: USA  is  $ 139    -    UK  is £ 106   -    Europe is € 126

-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

*  Belt tension should be under 29 Nm`s for Poly V-belt redrive.

*  And under 25 Nm`s for Tooth / timing belt redrives.

-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

 *   Shaft lock bush NOT included

       *   Over 685 redrives sold globally.

Designed for light weight and strength, using top quality SKF bearings and appropiate, high grade materials.

 ------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------------

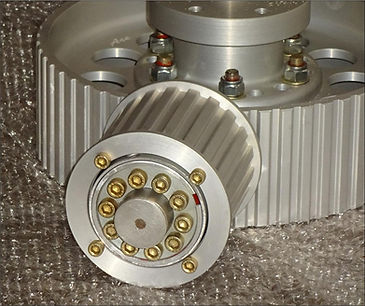

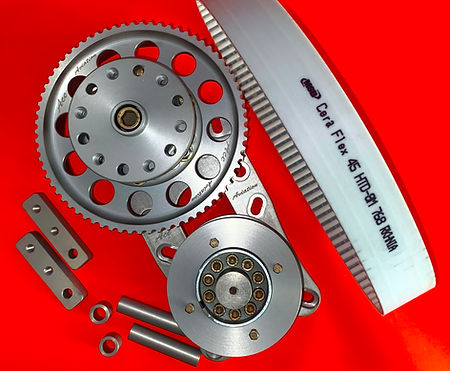

Tooth Pulley  -   Redrive  -  Reduction Drive  -  PSRU  -  Tooth pulleys and belt
GK. Gaokin  -  LZmoto  -  Odes  -  V-Twin engines.  -  Yamaha Phazer  -
61 hp, 66 hp and 85 hp
Ben 1.png

Eccentric shaft adjustment for belt tension is common to all Ace Aviation redrives. Takes just 5 minuites to tension the 2 Allen head bolts.

*  Belt tension should be under 25 Nm`s for all Tooth / timing belt redrives

PRICES. 800  /  850cc:  - - -   $ 1099   - - -   £ 879   - - -  € 1029

PRICES. Up to1000cc:  - - -   $ 1199   - - -   £ 938   - - -  € 1143

Freight to mainland USA. - - - -   US $ 139

Freight to mainland the U.K. - - - £ 106

Freight to Mainland Europe. - - - Euro 126



 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -



All GK redrives come with mounting blocks & plates, taper crankshaft adapter, assembly bolts for all machined parts. Ready to fit onto engine.



  • GK 800 & 850 redrive: Comes with mounting blocks & plates, taper crankshaft adapter and assembly bolts for all parts made by Ace Aviaion.

  • 1000 cc engine: Upper backplate to the engine is supplied. As above.



  • Customer is responsible for getting / buying the keyless bush for small pulley to the crankshaft. This is Not supplied by Ace Aviation.

  • All nuts and bolts are in all fittings that join all redrive parts together. BUT Customer gets bolts that go from the lower 4 backplate holes to their engine crankcase.



  • Standard Ratio 1 / 2.33



  • Easy eccentric shaft adjuster build into the design.

Designed for up to 86 HP

Redrive weight - 4.8 Kg

1:2.33 standard ratio

Easy eccentric cam adjustment for belt tension

-  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -  -

Shaft lock bush NOT included

 ---------------------------------------------------------------------------

 ----------------------------------------------------------------------
Redrive  -  Reduction Drive  - PSRU for:
Honda - Silver Wing. 50 Hp. 4 stroke engine
Silver WIng engine and redrive. - Copy.jpg

1 / 3.3 Standard ratio.



Honda Silver Wing redrive: US $ 899  -  £ 719



Freight to mainland USA. - - - - - -  US $ 109

Freight to mainland UK. - - - - - - -   £ 79

Freight to Mainland Europe. - - - -   Euro  92

Redrive for Vicente.jpg

------------------------------------------------------------

--------------------------------------------------------------------------------------------------
Redrive  -  Reduction Drive  - PSRU for
Yamaha Phazer. 2 cylinder 80 hp  and  3 cylinder 100 hp engines.

Coming soon

---------------------------------------------------------------------------------------------

--------------------------------------------------------------------------------------------------
Redrive  -  Reduction Drive  - PSRU for
Single Commercial engines. 200 - 460 cc. Briggs, Honda, and more.

PRICES:

US $ 619

£ 499

€ 509

Freight to Mainland USA - - - - - - - US $ 99

Freight to mainland UK - - - - - - - - £ 83

Freight to Mainland Europe - - - - - Euro 86

GX 200

Designed for up to 24 HP

2.75 kg



GX 390/420

Designed for up to 32 HP

2.85 kg

1:1.8 standard ratio

Easy eccentric cam adjuster

Send fully assembled

Eccentric shaft adjustment on all Ace Aviation redrives. Makes belt tension a 5 minuite job.

  •  Customer is responsible for getting the crankshaft / keyless bush for small pulley. Not supplied by Ace Aviation.

Redrive fixing for:

 - Honda GX 200/390/420

 - Subaru 6-15 HP

 - Briggs & Stratton 8-15 HP

 - Kawasaki

 - Kohler

 - Lifan

 - Yamaha

And others of the same HP

Shaft lock bush NOT included
